MACH II

MACH II Industrie-Schlammsauger

MACH II – the high-performance powerhouse

A reliable, flexible suction-pump combination like no other – the MACH II enables effective and uninterrupted suction and pumping of even large quantities of water and sludge.

The sewage water pump installed in the tank with a suction capacity of up to 15,000 l/h and the suction turbine in the top of the device not only move normal water, but also transport and pump heavily contaminated water and sludge with a blockage-free solid body passage of 40 mm. By means of the 12 m long C-hoses, a large working radius is achieved, which means that, for example, pumping from basements is also possible.

The MACH II is the high-end device for water and sludge.

Logo Industrie-Schlammsauger
Technical data MACH II
Suction capacity
15.000 l/h
OSM turbine power
1200 watt
Sewage water pump power
1000 Watt
Weight (without accessories)
30 kg
Suction hose and drain hose
12 meter length each, ø 50 mm
Dimensions
47 x 66 x 97 cm (width x depth x height)
MACH II Industrie-Schlammsauger

Technical data MACH II

  • Suction capacity: 15,000 l/h
  • Suction turbine power: 1200 Watt
  • Sewage water pump power: 1000 Watt
  • Weight (without accessories): 30 kg
  • Suction hose and drain hose: each 12 metres long, ø 50 mm
  • Dimensions: 47 x 66 x 97 cm (width x depth x height)
MACH II Industrie-Schlammsauger

You can count on this!

  • Enormous handiness and excellent rolling characteristics
  • Mechanical suction power regulation
  • C-Storz couplings on suction and drain side
  • 12 meter long suction and drain hoses
  • Extension hoses for suction and drain side for a total range of 24 meters
  • Robust materials and compact design
  • Large 70 litre tank
  • No service intensive electronics
  • Continuous operation with 5 kVA DIN generators
  • Cable length of 10 meters
  • Working noise of 64 dB (A)

Set includes:

  • Industrial vacuum cleaner for sludge MACH II
  • 12 m long suction hose
  • 12 m long drain hose
  • 120 cm suction pipe, ø 50 mm
  • Aluminium floor nozzle
  • Hose shut-off with ball valve
Pumpendiagramm Industrie-Schlammsauger MACH II

The industrial vacuum cleaner foir sludge is characterised by an enormous pumping capacity. The diagram shows the pump capacity in m³ per hour in relation to the pumping height.

Special solution for oil applications

Spills of coolants or hydraulic oil are a frequent occurrence, especially in industrial production facilities. With nozzles, a hose and stainless steel suction pipes in oil-resistant quality, the MACH II becomes the perfect tool for these cases. Mobile containers can also be equipped with the box accordingly.

With the additional package for the MACH II, you are fully equipped for all possible applications.

The additional package includes:

  • Storage box with lid
  • Oil-resistant suction hose with C-Storz coupling, 4 m
  • Stainless steel suction pipe, 2-piece, ø 40 mm
  • Mobile floor nozzle, ø 40 mm
  • Plastic joint nozzle

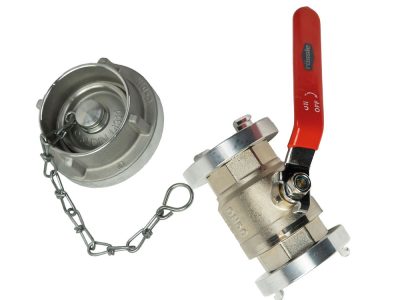

  • Blind coupling and ball valve for closing the couplings on the suction side and the discharge side of the industrial vacuum cleaner for sludge
Technical data Additional package
Weight
10 kg
Dimensions
60 x 40 x 22 cm (width x depth x height)
Material storage box
Polypropylene
Zusatzpaket

Technical data additional package

  • Weight: 10 kg
  • Dimensions storage box: 60 x 44 x 22 cm (width x depth x height)
  • Material storage box: Polypropylene
